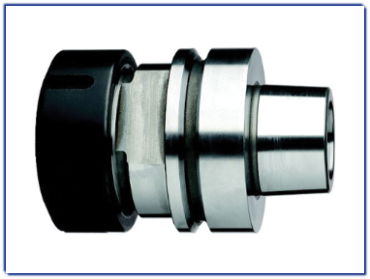

Chuck with HSK shank
Article 1230
Technical specifications:
High precision chucks for the new generation pantographs.
Suitable for router bits with cylindrical shank.
Chuck HSK 63 tool holder built according to the standard DIN 69893. Made of stainless cementation steel with hardened depth 0.8-
CNC machine.
CNC machine - |
||||||

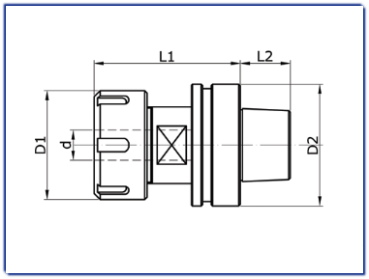

Collet |
d |
D1 |
D2 |
L1 |
L2 |
Rotation |
ER32 |
3÷20 |
50 |
50/63 |
73/78 |
25/32 |
left / right |
ER40 |
4÷30 |
63 |
50/63 |
75 |
25/32 |
left / right |
EOC25 |
2÷25 |
60 |
50/63 |
90 |
25/32 |
left / right |
CNC machine - |
||||||
Collet |
d |
D1 |
D2 |
L1 |
L2 |
Rotation |
ER32 |
3÷20 |
50 |
50 |
73 |
20 |
left / right |
ER40 |
4÷30 |
63 |
50 |
75 |
20 |
left / right |
EOC25 |
2÷25 |
60 |
50 |
90 |
20 |
left / right |
CNC machine - |
||||||
Collet |
d |
D1 |
D2 |
L1 |
L2 |
Rotation |
ER32 |
3÷20 |
50 |
63 |
73 |
25 |
left / right |
ER40 |
4÷30 |
63 |
63 |
80 |
25 |
left / right |
EOC25 |
2÷25 |
60 |
63 |
90 |
25 |
left / right |
All measurments are in millimeters (mm). |
