Offers

Current offers

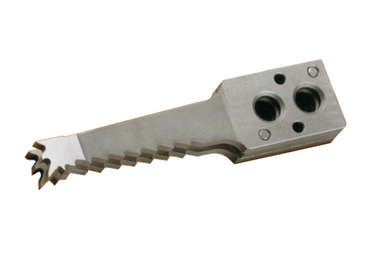

SIMPLE CHISEL

Technical specifications:
The chisel is a cutting tool assembled on an eccentric head and produces mortises in the wood trough an oscillating motion.
The tool's body is made of steel and the cutting blade is made of an HSS steel plate.
Suitable for solidwood.

Application:

Mortiser


MADE IN ITALY

Offer 1

Simple chisel - Dimensions: 8 x 40/50 x 80 - z 3

175,00 € Add

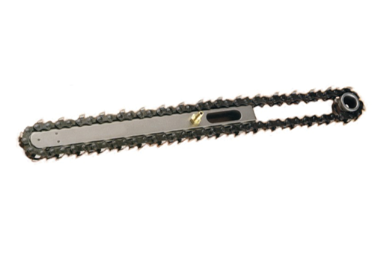

MORTISE CHISEL

Technical specifications:
Single or double chain to make the rectangular mortises in the wood.
The chain mortising equipment is made of a chain, a guide bar and a sprocket.
The double mortise equipment is made of two normal chains, two double mortise guide bars, two double mortise sprockets, a spacer between the bars and a spacer between the sprockets.
All guide bars are supplied with lubricating device except double mortise guide bars with B = 20.
Suitable for solid wood.


Application:
Chain mortise

MADE IN ITALY

Offer 2

Mortise chain - Dimensions: 12 x 40 x 150 - Pitch 22,60

220,00 € Add

CARVING BIT SPOON SHEPED BOTTOM Z 1

Technical specifications:
HS (HSS) carving bits with one cutting edge.
The right tool for the automated and manual processes.
Suitable for non glued softwood.


Application:
Carving machine

MADE IN ITALY

Offer 3

Carving bit spoon shaped bottom - Dimensions: D 8 x 25 x 90 - z 1

17,50 € Add

CARVING BIT SPOON BOTTOM - Z 1

Technical specifications:
HS (HSS) carving bits with one cutting edge.
The right tool for the automated and manual processes.
Suitable for non glued softwood.


Application:
Carving machine

MADE IN ITALY

Offer 4

Carving bit spoon shaped bottom - Dimensions: D 20 x 25 x 95 - z 1

23,50 € Add

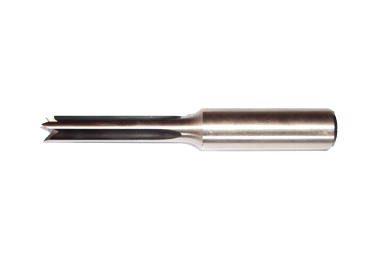

MORTISING BIT - Z 4

Technical specifications:
Mortise bit with two HSS straight cutting edges, haed grinded only.
Suitable for softwood and hardwood.


Application:
Mortising machine

MADE IN ITALY


Offer 5

Mortising bit - Dimensions: HSS - D 12 x 50 - shank 16 x 50 - z 4

12,00 € Add

CHUCK WITH ISO 30 SHANK

Technical specifications:
High precision chucks for the new generation pantographs.
Suitable for router bits with cylindrical shank.
Made of stainless cementation steel with hardened depth 0.8-1 mm, sanded and burnished by HRC 58 +2.
Core strength 800-1000 N / mm ². Precision refaced surfaces externally and internally.


Application:
CNC machine

MADE IN ITALY

Offer 6

Chuck with ISO30 shank - Dimensions: ER 32 - ISO 30

45,00 € Add

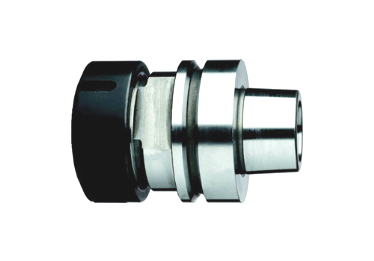

CHUNK WITH HSK SHANK

Technical specifications:
High precision chucks for the new generation pantographs.
Suitable for router bits with cylindrical shank.
Chuck HSK 63 tool holder built according to the standard DIN 69893.
Made of stainless cementation steel with hardened depth 0.8-1 mm, sanded and burnished by HRC 58 +2.
Core strength 800-1000 N/mm ². Precision refaced surfaces externally and internally.There are available standard ER32 and ER40.


Application:
CNC machine

MADE IN ITALY

Offer 7

Chuck with HSK shank - Dimensions: ER 32 - HSK 50/63

65,00 € Add

CHUCK WITH HSK SHANK CARRYING DRILL

Technical specifications:
High precision chucks for the new generation pantographs.
Suitable for profiled and rebate cutters.
Chuck HSK 63 tool holder built according to the standard DIN 69893.
Made of stainless cementation steel with hardened depth 0.8-1 mm, sanded and burnished by HRC 58 +2.
Core strength 800-1000 N/mm ². Precision refaced surfaces externally and internally.There are available standard ER32 and ER40.


Application:
CNC machine, moulder Weinig

MADE IN ITALY

Offer 8

Chuck with HSK shank carrying drill - Dimensions: D 30 x 100 - HSK

65,00 € Add

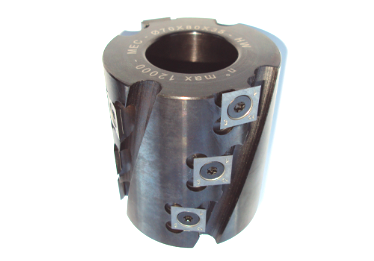

INSERT SPIRAL PLANING CUTTER WITH SQUARE SPURS

Technical specifications:
Insert cutter for planing positioned on a spiral design, with 4/6 starting helicies.
The tool is made with Hc square spur inserts 14x14x2 mm thick.
Suitable for abrasive, hard, soft and glued woods.


Application:
Moulder, spindle moulder

MADE IN ITALY



.

Offer 9

Insert spiral planing cutters with square spurs - Dimensions: HM - D 70 x 80 x 35 - z 12

220,00 € Add

CUTTER ANTISLIP

Technical specifications:
Profiled adjustable cutter for non-slip flooring
The tool is made from Hm reported.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood, chipboard.


Application:
Moulder, spindle moulder

MADE IN ITALY

Offer 10

Cutter antislip - Dimensions: HM - D 125 x 90 x 40 - Z 3+3
Regulation from 90 to 150 mm

470,00 € Add

MULTICUT SPIRAL INCLINED CUTTER

Technical specifications:
Cutter with 12 wings in Hc (brazed tungsten carbide) fractionated, positioned on a spiral pattern, with two starting helicies.
The tool allows to work at high speed and deep wood removal with good surface finishing.
Suitable for softwood, hardwood and glued wood.


Application:
Moulder, spindle moulder

MADE IN ITALY

Offer 11

Multicut spiral inclined cutter - Dimensions: HM - D 100 x 150 x 40 - Z 12
Helix 20°

500,00 € Add

In case you have not found the tool of your interest, you can request a personalized offer by clicking here.
