Complex chisel
Article 1115
Technical specifications:

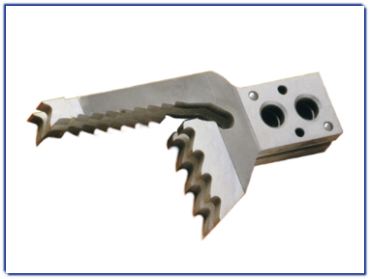

The chisel with heel is a cutting tool assembled on an eccentric head and produces two different depths mortises in the wood trough an oscillating motion. The tool's body is made of steel and the cutting blade is made of an HSS steel plate. The chisel can be simple or double (to perform the two mortises simultaneously), may have one or two inclined sides (to perform slating mortises).
Suitable for solidwood.
Application:
Mortiser.
Thickness (S) |
Mortise width (A) |
Mortise width (B) |
Lenght (Lt) |
Shank (Att) |
6÷16 |
40÷50 |
30÷40÷50 |
on request |
by design |
| 50÷60 |
30÷40÷50÷60 |
on request |
by design |
|
| 60÷70 |
30÷40÷50÷60÷70 |
on request |
by design |
|
| 70÷80 |
30÷40÷50÷60÷70 |
on request |
by design |
|
| 80÷90 |
50÷60÷70÷80÷90÷100 |
on request |
by design |
|
| 90÷100 |
50÷60÷70÷80÷90 |
on request |
by design |
|
| 100÷110 |
50÷60÷70÷80 |
on request |
by design |
All measurments are in millimeters (mm). |
