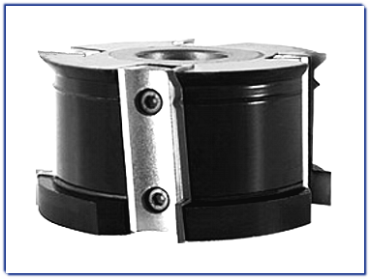

Insert profiled cutters
PRODUCTS > INSERT CUTTERS
Article 0300
Technical specifications:

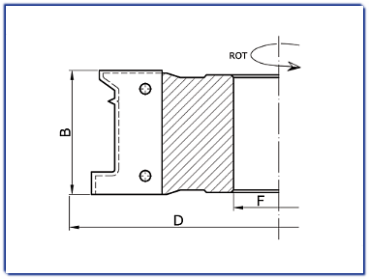

Profiled cutter according to technical drawing.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 2 mm thick.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Application:
Moulder, shaper, spindle moulder, squaring, tenoning machine, cnc machining center for windows.
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
80 |
10/20/30/40/50/60/70/80 |
30/35 |
2/3/4 |
100 |
10/20/30/40/50/60/70/80 |
30/35/40 |
2/3/4 |
120/140/160/180 |
10/20/30/40/50/60/70/80 |
30/35/40/50 |
2/3/4 |
200/250/300 |
10/20/30/40/50/60/70/80 |
30/35/40/50 |
2/3/4/6 |
All measurments are in millimeters (mm). |
