Multi-profiled router cutters
PRODUCTS > ROUTER TOOLS
Article 0475
Technical specifications:
Insert cutters with two Hc profiled inserts, 2 mm thickness.
Tool has two support plates shaped according to the profile.
On the same tool body can be mounted knives of different profiles, accompanied with plates shaped according to the profile.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Application:
Manual or electronic router.

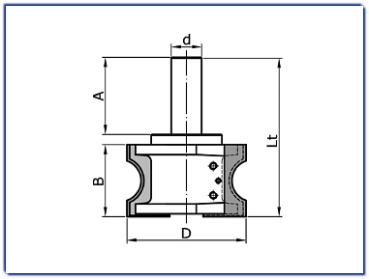

Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
80/90 |
30/40/50/60 |
20x50/25x50 |
2 |
All measurments are in millimeters (mm). |
