Adjustable panel sizing scoring saw blades

PRODUCTS > SAW BLADES

Article 0841

Technical specifications:
Adjustable scooring saw blades with alternated teeth, used on the machines cutting coupled with panel sizing saw.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for panels, plywood, chipboard, plywood, MDF, laminates, bilaminates.

Application:
Panel saw machine.

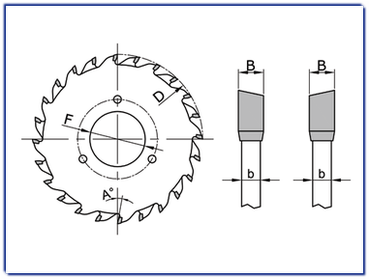

Diameter (D)	Thichness (B)	Angle (A°)	Bore (F)	Cutting edges (Z)
80	2,80-3,60	12°	20	10+10
100	2,80-3,60	12°	20/22	10+10/12+12
120	2,80-3,60	12°	20/22/50	12+12
125	2,80-3,60/4,20-5,20/4,40-5,50	12°	20/22/50	12+12/20+20
130	2,80-3,60	12°	20/22	12+12
150	3,50-4,50/4,40-5,50	12°	20/30	12+12/18+18
160	4,40-5,50	12°	20/30	18+18
180	4,20-5,20/4,40-5,50/5,00-6,00/6,00-7,00	12°	20	18+18/24+24
200	3,20-4,20/3,40-4,40/4,20-5,20/4,40-5,50/6,00-7,00	12°	20	30+30
220	4,20-5,20	12°	20	30+30
250	4,20-5,20	12°	30/50	32+32
300	4,20-5,20/4,30-5,50	12°	50	32+32
320	4,40-5,50/4,60-5,60	12°	45/50	32+32
340	4,40-5,50	12°	45/50	32+32

Design of saw's bore

design bore 1 design bore 2

All measurments are in millimeters (mm).
