Circular saw blades for hogging sets

PRODUCTS > SAW BLADES

Article 0855

Technical specifications:
Saw blades for squaring and trimming of panels on single or double end-tenoning machine.
The locking holes and the hollows are made are made so that these saw blades are interchangeable on hoggers.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for chipboard, MDF, plywood, laminates and bilaminates.

Application:
Single or double end tenoner machine.
Parts for mechanical locking tools (Article 0850).

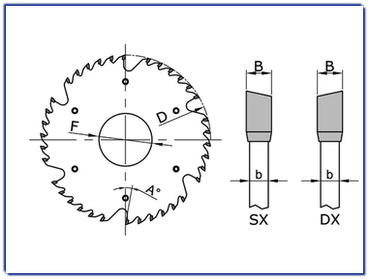

Diameter (D)	Thichness (B)	Angle (A°)	Bore (F)	Cutting edges (Z)
200	4,10	12°	80	44/48/60
205	4,10	10°/12°	80	44/46/48/58/60
250	4,10	7°/12°	80/100/130	40/54/56/60/72/78/80
250	4,20	10°	130	72
255	4,10	10°/12°	80/100/130	40/54/56/60/72/78/80
300	4,10	12°	80/130/140/155	48/72/96
350	4,10	12°	155/170	54/84

Design of saw's bore
BSP		Leuco	Witox	Freud
design bore 1	design bore 2	design bore 3	design bore 4	design bore 5

All measurments are in millimeters (mm).
