Doors tools
Article 0980
Technical specifications:
Programmed tools with HC (integral tungsten carbide) inserts or diamond inserts, 2 mm thikcness, replaceable and sharpenable. The bodies are made of great resistance steel and are programmed between them both in height and in diameter, giving the possibility to set the machine only once time.

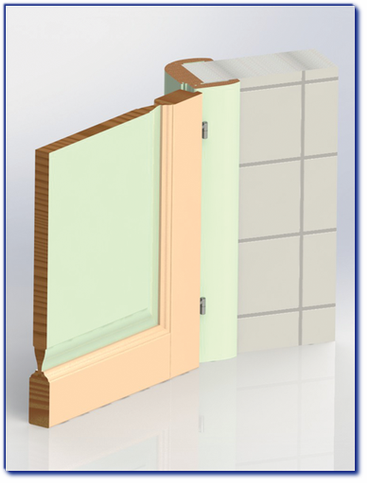

Set of tools allows the realization of the frame and the inner and outer solid wood door, with or without fixing strip, with a wide range of profiles.
Application:
Spindle moulder, window frame machine center, combined machine.

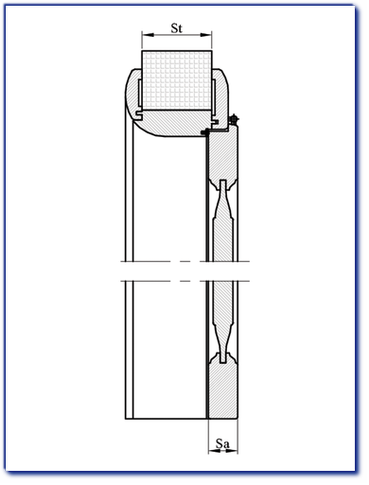

Wing thickness (Sa) |
Profiling minimum diameter (d) |
Tenoning maximum diameter (D) |
|
44÷68 |
125 |
304 |
|
Programmed group (with glass or panel to thread) for doors |
|||
Group |
Gruop description |
||
1 |
Inside wing profiling |
||
2 |
Wing tenoning |
||
3 |
Panel profiling |
||
Programmed group (with glass or panel fixing lath regaining) for doors |
|||
Group |
Gruop description |
||
1 |
Inside wing profiling |
||
2 |
Wing tenoning |
||
3 |
Panel profiling |
||
4 |
Panel or glass bead removal group |
||
Programmed group for frame of doors |
|||
Group |
Gruop description |
||
1 |
Frame fixed part profiling |
||
2 |
Frame mobile part profiling |
||
3 |
Frame jamb tenoning |
||
4 |
Frame upper crosspieces tenoning |
||
5 |
Upper crosspieces and wing jamb profiling |
||
6 |
Door frame moulding fixed part |
||
7 |
Door frame moulding mobile part |
||
8 |
Door frame fixed and mobile parts profiling |
||
All measurments are in millimeters (mm). |
