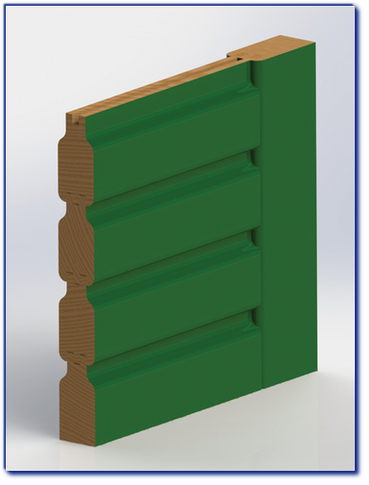

Shutters tools - Type B
Article 0971
Technical specifications:
Programmed tools with HC (integral tungsten carbide) inserts or diamond inserts, 2 mm thikcness, replaceable and sharpenable. The bodies are made of great resistance steel and are programmed between them both in height and in diameter, giving the possibility to set the machine only once time.

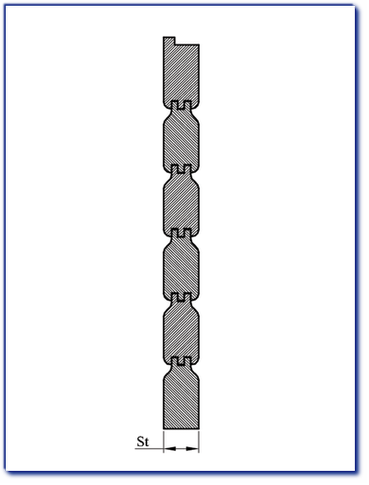

Possibility of realization of different thicknesses of the wing, with different types of central locking, added and central crosspieces .
Application:
Spindle moulder, window frame machine center, combined machine.
Wing thickness (Sa) |
Profiling minimum diameter (d) |
Tenoning maximum diameter (D) |
|
44 |
130 |
304 |
|
Group |
Gruop description |
||
1 |
Female crosspieces profiling |
||
2 |
Jamb profiling |
||
3 |
Male crosspieces profiling |
||
4 |
Crosspieces tenoning |
||
5 |
External squaring |
||
6 |
Squaring of central left wing jamb |
||
Group |
Central closing variant |
||
7 |
Straight wing squaring |
||
8 |
Rustic wing squaring |
||
9 |
Profiled wing squaring |
||
Group |
Added crosspieces variant |
||
10 |
Lower crosspieces profiling |
||
All measurments are in millimeters (mm). |
