Windows tools - JV68 - OMER

Article 0945

Technical specifications:
Programmed tools with HC (integral tungsten carbide) inserts or diamond inserts, 2 mm thikcness, replaceable and sharpenable. The bodies are made of great resistance steel and are programmed between them both in height and in diameter, giving the possibility to set the machine only once time.

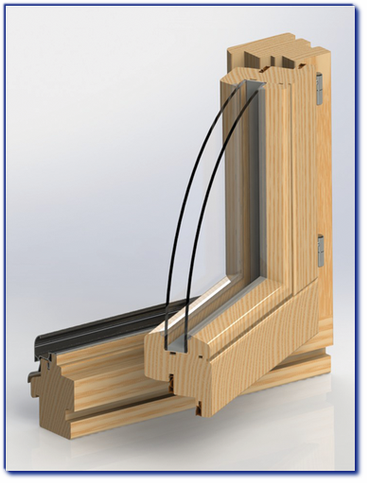

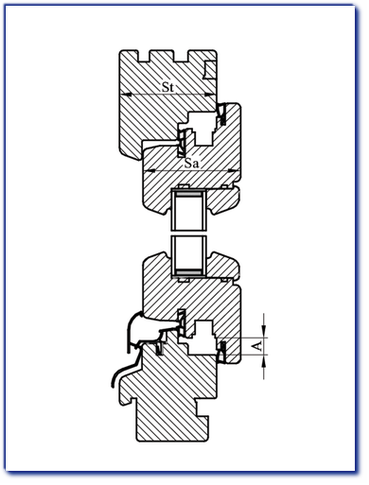

Possibility of realization up to three gaskets, aluminium drip, thermic and acoustic gasket on the wings, possibility of folding wing, tenoning with two pins and a half, with strengthening tenon in wing tenoning, condensate relase and aeration groove, metal-fitting hideway, make one window frame perfect and versatile, corresponding to the european classification norms.

Application:
Spindle moulder, window frame machine center.
