Shutters tools - Type A
Article 0970
Technical specifications:

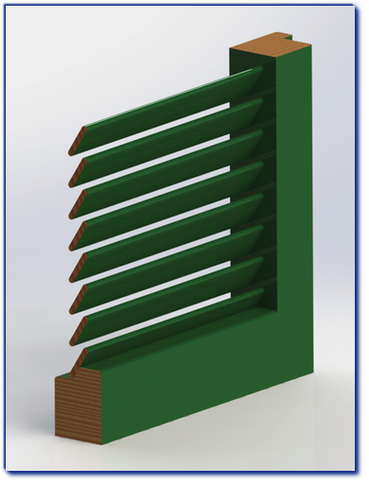

Programmed tools with HC (integral tungsten carbide) inserts or diamond inserts, 2 mm thikcness, replaceable and sharpenable. The bodies are made of great resistance steel and are programmed between them both in height and in diameter, giving the possibility to set the machine only once time.
Possibility of realization of different thicknesses of the wing, with different types of central locking, added and central crosspieces .
Application:
Spindle moulder, window frame machine center, combined machine.

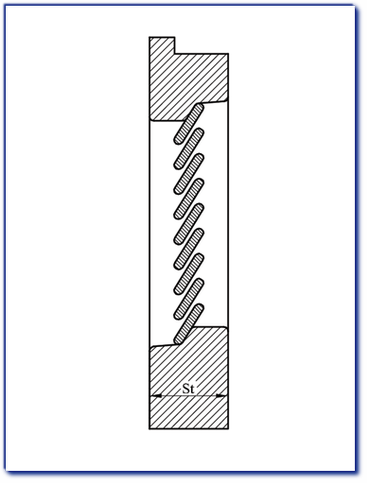

Wing thickness (Sa) |
Profiling minimum diameter (d) |
Tenoning maximum diameter (D) |
|
45/54 |
130 |
304 |
|
Group |
Gruop description |
||
1 |
Crosspieces profiling |
||
2 |
Jamb profiling - |
||
3 |
External squaring |
||
4 |
Squaring of central left wing jamb |
||
5 |
Crosspieces tenoning |
||
6 |
Jamb tenoning- |
||
7 |
Jamb tenoning |
||
Group |
Central closing variant |
||
8 |
Straight wing squaring |
||
9 |
Rustic wing squaring |
||
10 |
Profiled wing squaring |
||
Group |
Added crosspieces variant |
||
11 |
Lower crosspieces profiling - |
||
12 |
Upper crosspieces profiling - |
||
13 |
Crosspieces profiling - |
||
All measurments are in millimeters (mm). |
